WiLANTA IQ Generator: Build IEEE 802.11a/b/g baseband I/Q signal files creator



IQ Generator

Overview

The software creates a baseband I/Q waveform file based on the user-defined 802.11a/b/g settings and saves the signal files in .txt format on the computerís local hard drive or any other specified location. In addition to creating ideal waveform files with or without a MAC configuration, the software provides configurations to create and save impaired signal.

WiLANTA IQ generator simplifies the 802.11a/b/g test signals by providing an intuitive graphical user interface which enables the user to quickly configure a standard based test signal with complete control over MAC Frame data.

WiLANTA IQ generator creates all supported 802.11b/g MAC Frames (Data, Management and Control) including the sub frames mentioned in the standard, and saves this information in .txt format.

WiLANTA IQ generator allows designers/engineers to accurately create and save ideal or impaired signals. The signal files can be downloaded to WiLANTA LVSA11bg signal analyzer or any other third party analyzer or generator.


Features



Standards Supported


IEEE 802.11g
IEEE 802.11b
IEEE 802.11a


Data Rates Supported


1,2,5.5,6,9,11,12,18,24,36,48,54 Mbps


Modulation formats Supported


OFDM
CCK/DSSS


MAC Frames Supported


Data
Management
Control

Supports all the Sub Frame types
mentioned in standard

Data configuration patterns

User defined pattern
Predefined pattern
Text message
PRBS


Build your own signals



Save the signal information in .txt format



Impairments Supported


Memoryless Nonlinearity
  AWGN (Additive White Gaussian Noise)
  Frequency Offset
  DC Offset
  I/Q gain imbalance
  Quadrature skew
  Phase noise

Measurements

  IQ plot
  Constellation Diagram
  Transmit power plot
  Power Spectrum plot
  CCDF plot
  Packet Parameters

Configurations

  Enable/Disable MAC configuration
  Enable/Disable Impairments Configuration
  Configure resampling frequency


Display Parameters


  File path
  Complex IQ data
  Impairments Applied


Extensive Graphical capabilities


  Changing plot color
  Thickness and style of lines
  Zoom
  Markers

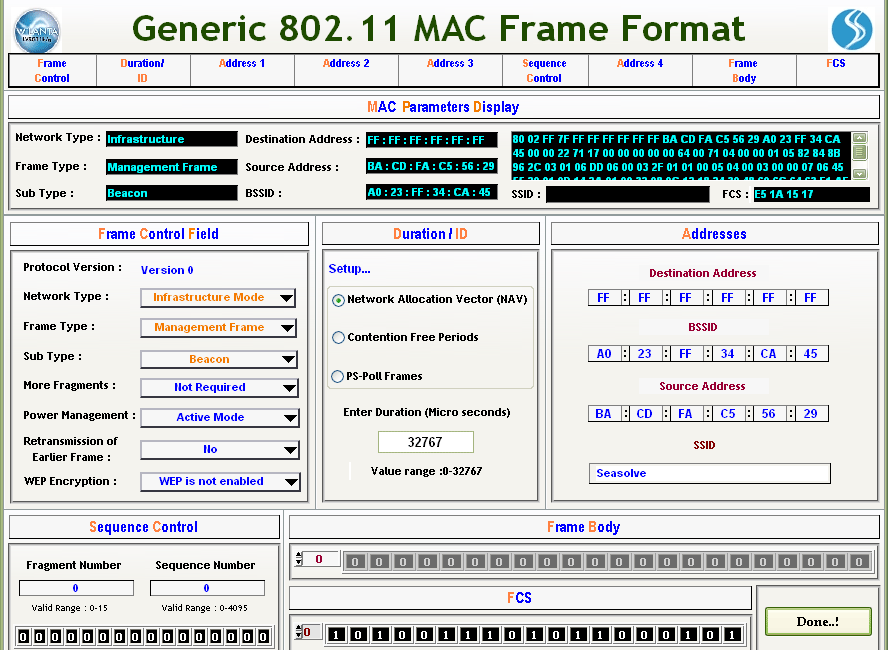

Figure 1: IEEE 802.11b/g MAC Frame Format

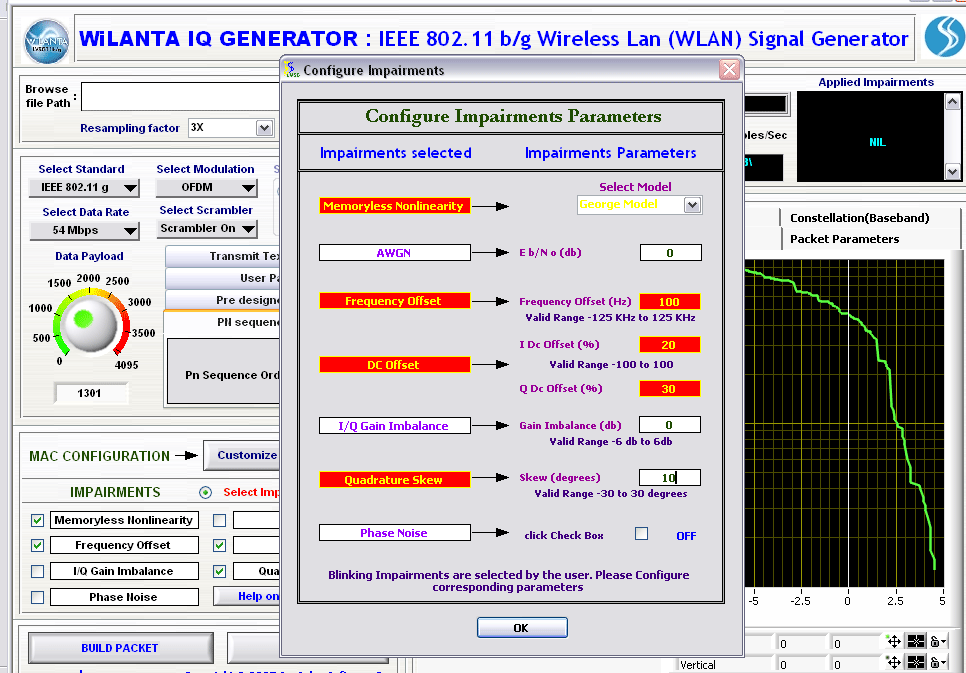

Figure 2: Impairments Configuration

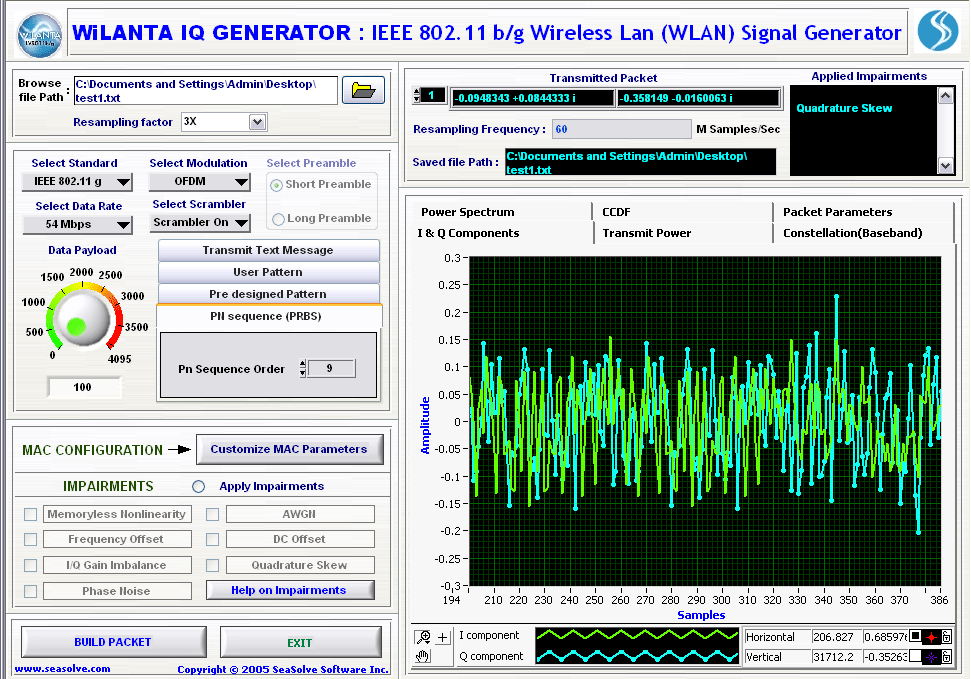

Figure 3: IQ Plot of the configured data
